MACHINES

...

Feeding machines

FLEXFEED SP300-400 FEEDING MACHINE

Manual feeding – suction table. All types of cloth sizes.
  • Designed for safety and simplicity.
  • Manual feeder on a suction table, allowing all types of clothing sizes to be processed.
  • It can be adapted to suit all types of flatwork ironers.
  • Its versatility allows you to work with 1 to 6 lines.
  • This machine has a robust structure and only requires minimum maintenance.
  • Working width: 3000, 3300 or 4000mm
  • Option of placing a clothing collection basket under the feeding table. It makes work easier and speeds up production.
  • The FlexFeed is built on guide wheels, which allow the machine to move as it needs too.
  • The fluff filters (bag filter) can be placed on the upper side or at the rear of the machine.
  • The suction housing features hinged panels and is easily accessed.
  • Synchronization with the flatwork ironer is carried out using an automated frequency shifter.



FEEDING MACHINE - FLEXFEED LP1 300-400

Versatile feeding machine for large and small items of clothing.
  • Versatile feeder for flat work, which can take all types of large and small items like bedsheets, quilt covers, pillow covers, table cloths, etc.
  • The servo clamps controlled from the separator, the high-speed input roller, the brushes and vacuum box (slightly elevated), all contribute to high-quality feeding.
  • Available in different working widths: 3000mm, 3300mm, 3500mm or 4000mm.
  • Option of 4 different operation modes, from one to six operators.
  • Touchscreen control.

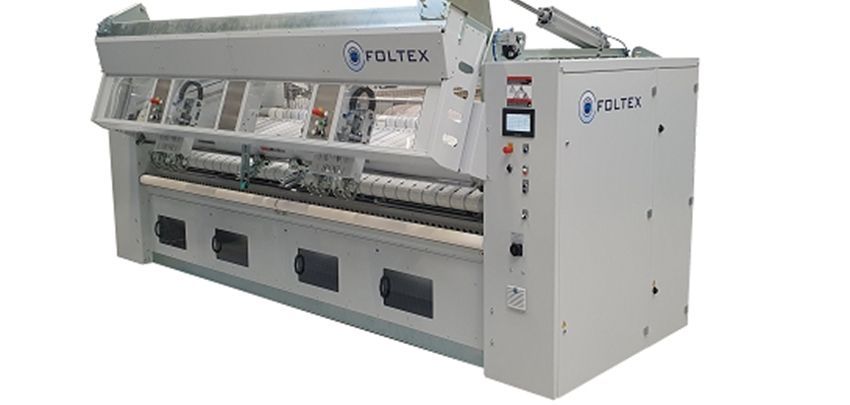

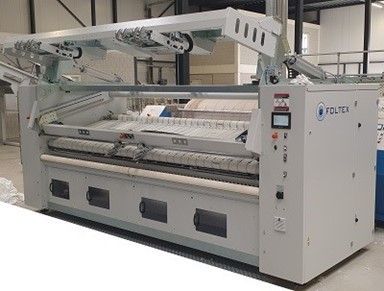

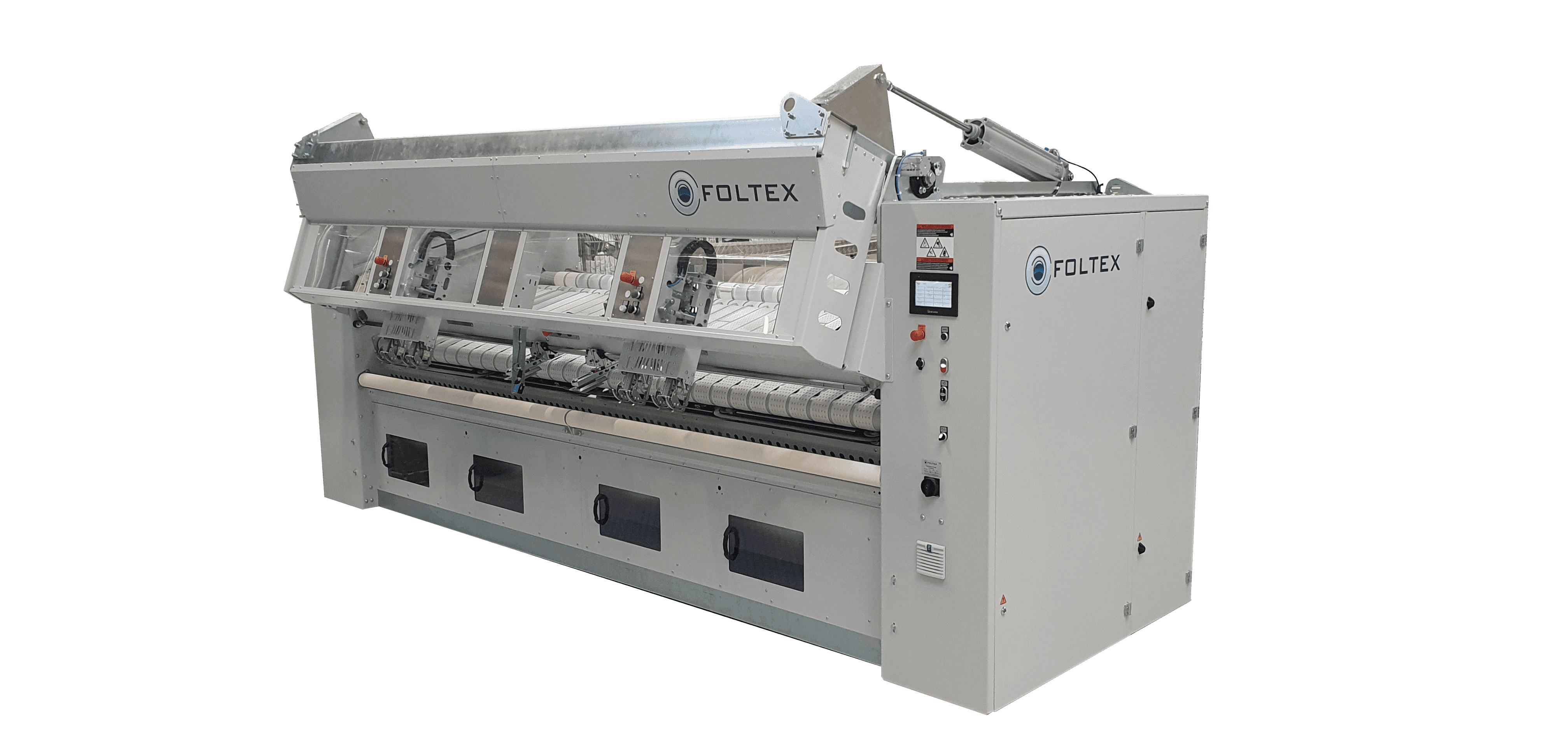

FEEDING MACHINE - FLEXFEED LP2 300-400

Versatile, high-quality feeding machine.
  • Outstanding productivity on a wide range of large or small clothing, for example, bedsheets, table cloths, napkins, pillow covers,aprons, etc.
  • 2 power stations on each side of the machine.
  • High-powered suction housing.
  • Servo control.
  • 3 types of feeding.
  • Working widths: 3000mm, 3300mm, 3500mm, 3700mm and 4000mm.
  • Versions available: simple and twin lanes.
  • Modified front for direct feeding.
  • Complete synchronization with a flatwork ironer/folding machine.
  • Distributor brushes mounted for sweeping out.

FEEDING MACHINE - FLEXFEED LP3/4 300-400

Versatile, high-quality feeding machine.

The FlexFeed LP3/4 is a feeder which combine quality with productivity. The patented design ensures full control over the leading edge offering highest feeding quality.

Folding machines

FOLDING MACHINE - FLEXFOLD LP 300-400

Clothing folding machine that can handle all types of garments.
  • Clothing folding machine that can handle all types of garments.
  • Clothing folding machine that can handle all types of garments like pillow covers, quilt covers, table cloths and napkins.
  • Simple, robust and effective design.
  • Different configurations.
  • 2 or 3 longitudinal folds up to 4 ways.
  • 1, 2 or 3 crossfolds.
  • Forced-air folding system.
  • The double line air injection allows you to fold items of all types of thicknesses.
  • Sturdy and resistant construction

FOLDING MACHINE - FLEXFOLD AT180 SLIM

The most compact folding machine on the market.
  • All types of articles, perfect for folding and stacking all types of towels and underwear
  • Available with 3 stacking stations or subsequent output
  • Garments up to 1800 x 900mm dimensions max.
  • Each folding programme can handle up to 3 different articles.
  • The longitudinal fold is carried out using an accurate pulsed air flow.
  • Position-controlled templates: once the article is inserted into the longitudinal fold section, the length is measured (and possibly the width too) and the folding templates are automatically adjusted.
  • Principle of cross folding; to ensure stable and high-quality folds, the two crossfolds are produced by straps.

FOLDING MACHINE - FLEXFOLD AT230

Folding machine and stacker for all types of towels.
  • It folds and stacks all types of towels, clothing, bedsheets and other dry items.
  • Automatic sorting system; no manual sorting required.
  • The FlexFold AT180 can fold items of 180x120cm dimensions max.
  • The FlexFold AT230 can fold items of 230x120cm dimensions max.

OPTIONS

  • It folds all types of towels and other types of clothing too. However, long items must be inserted with the neck down to achieve a nice result after folding. This option allows you to fold all types of light and heavy items (with a simple neck at the entry point), and overalls too.
  • Longitudinal fold made with blades instead of air. Production control system.
  • Main/secondary system. Two machines are connected and share an inclined belt to reduce the space required and provide the option of directing the stack straight to the packaging machine (without any human intervention).
  • Dispatch to the shared belt. Inclined belt adjusted using the control system for automatic transfers to the common laundry bands.

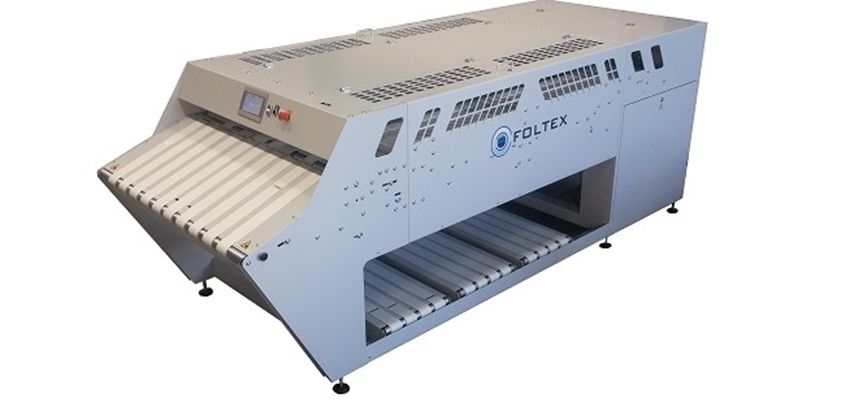

FOLDER - FLEXFOLD MT200

FOLDING MACHINE - FLEXFOLD MT200

The FlexFold MT200 towel folder is the perfect solution for folding and stacking all kinds of towels, garments, fitted sheets and other tumbler dried pieces.

FOLDER - FLEXFOLD GT200

FOLDING MACHINE - FLEXFOLD GT200

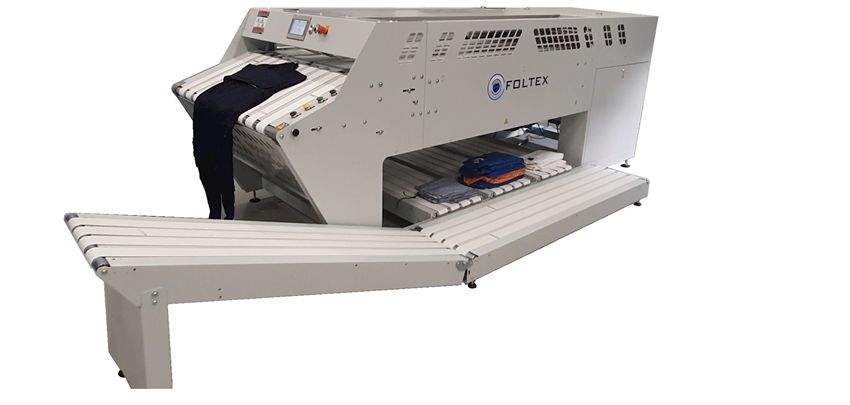

FOLDER - FLEXFOLD MG200/AG220

FOLDING MACHINE - FLEXFOLD GT200
  • The FLEXFOLD AG220 is the ideal folding machine for laundries processing a wide range of garments and towels.
  • Once the piece enters the longitudinal fold section, the item is identified by measuring its length. The longitudinal/primary fold(s) are accomplished by a combination of position-controlled
    folding templates and air blasts.
  • The measuring of each item combined with a large primary fold section allows operators to process mixed batches containing a wide range of sizes.

FOLDING MACHINE - EASYFOLD Bathrobe

Bathrobe folding machine
  • Three times quicker than manual folding.
  • Patented.
  • For all types of bathrobes regardless of size or thickness.
  • The patented EasyFold Bathrobe system is the first bathrobe folding system on the market that can fold different types of bathrobes regardless of their dimensions, thickness or weight.
  • Easyfold Bathrobe triples production in comparison with manual folding systems
  • Occupies 1.70m2
  • Easy installation and operation.
